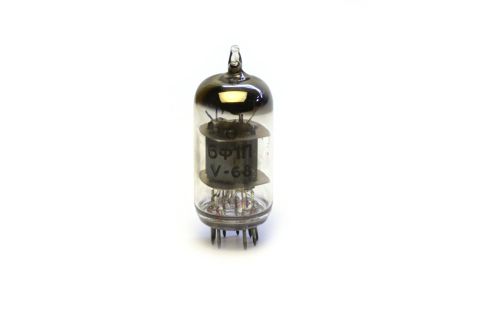

6F1P (6Ф1П) Pentode Part


All tube operating points below are by no means definitive good sound recipe for your particulate tube project. Lowest THD point is not necessary best sounding one and there is always some variance even in a NOS tube batch from the same manufacturer!  Below information is only useful as a general starting point and is ment to get you in a ballpark when no measurement equipment is available.

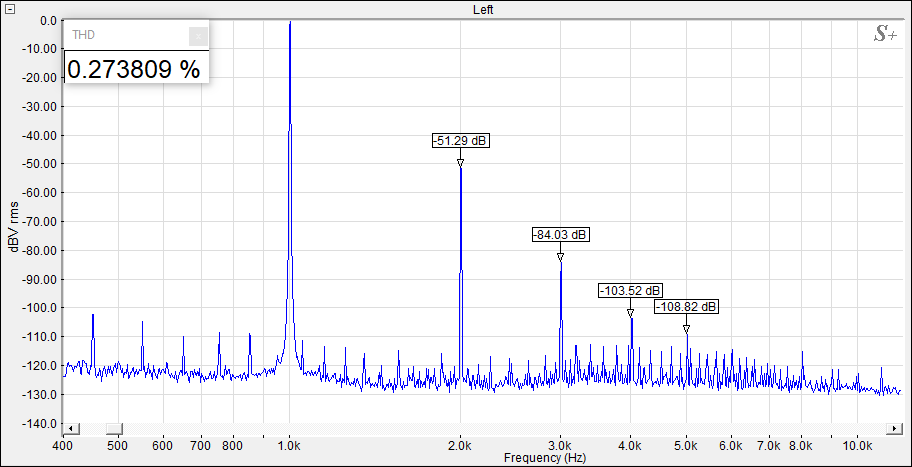

Lowest THD operating point spectrum


12.5mA, -0.7V BIAS, 131Va

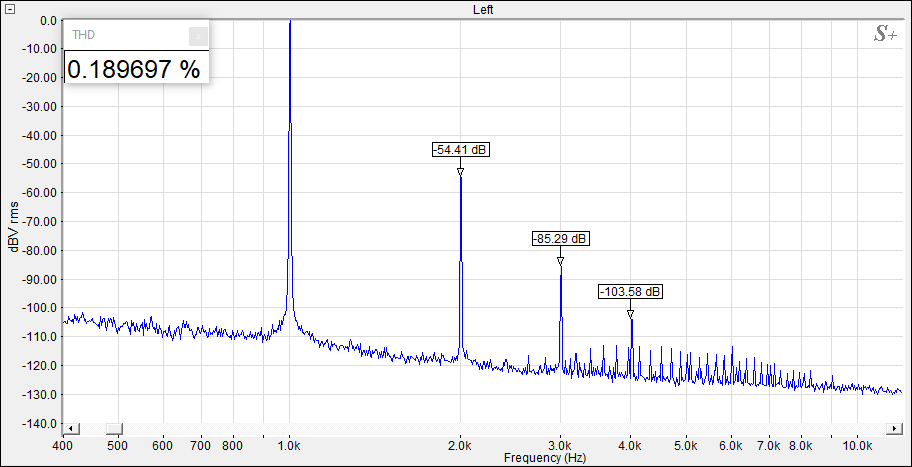

Recommended operating point spectrum


10mA, -1.6V BIAS, 150Va

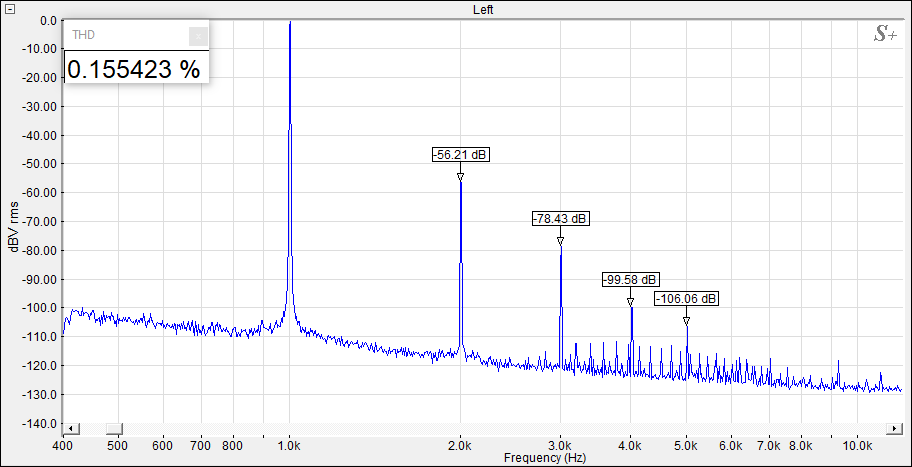

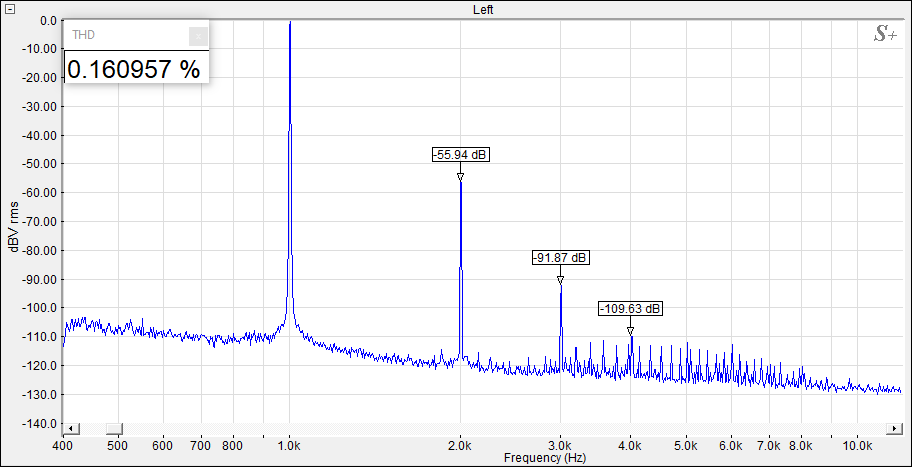

Other operating points


8mA, -1.74V BIAS, 144Va
5mA, -0.87V BIAS, 90Va

Traced plate curves


Comment


Another linear soviet pentode with a nice spectrum. Definitely usable. Available for sale.
