6F1P (6Ф1П) Triode Part


All tube operating points below are by no means definitive good sound recipe for your particulate tube project. Lowest THD point is not necessary best sounding one and there is always some variance even in a NOS tube batch from the same manufacturer!  Below information is only useful as a general starting point and is ment to get you in a ballpark when no measurement equipment is available.

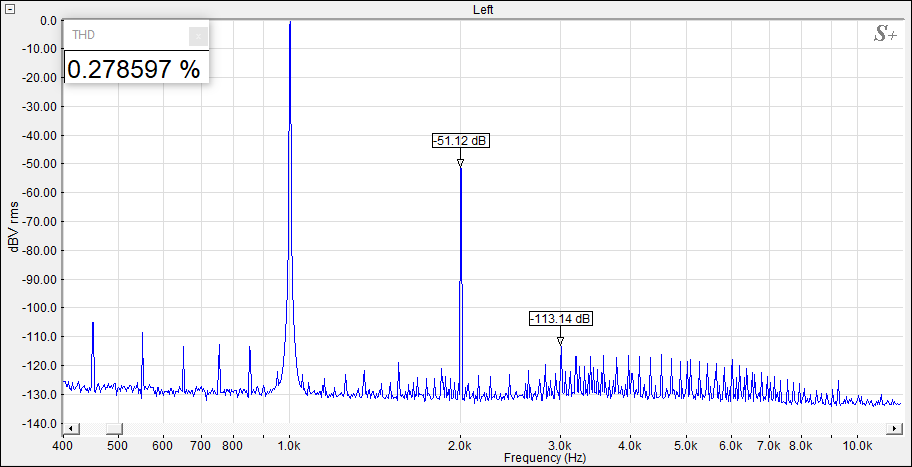

Lowest THD operating point spectrum


10mA, -4.34V BIAS, 161V

Other operating points

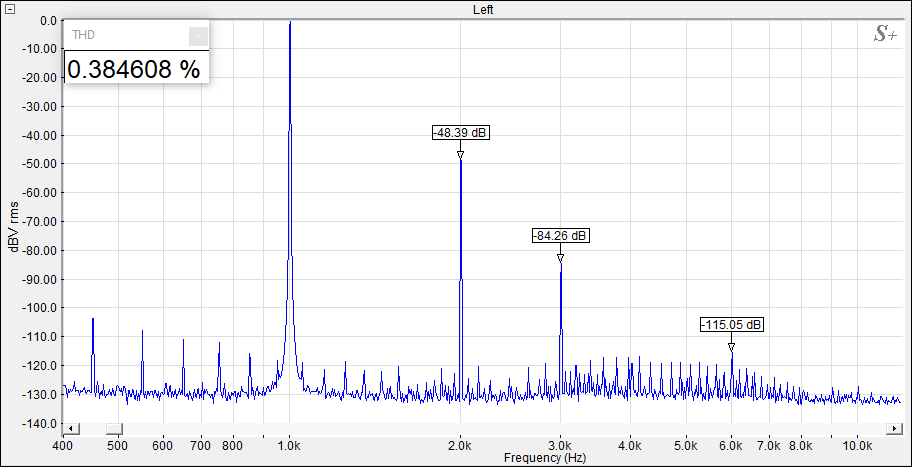

 8mA, -4.8V BIAS, 161Va

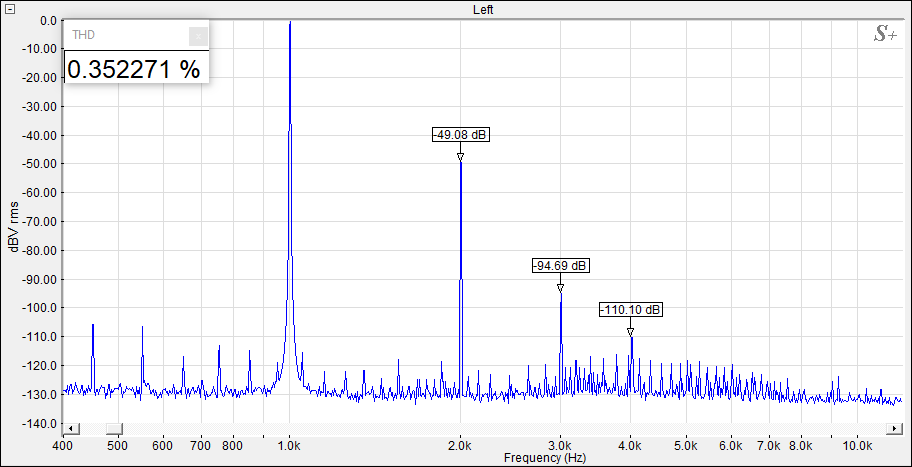

6mA, -7.67V BIAS, 205Va

Traced plate curves


Comment


Quite linear triode with a clean spectrum. Available for sale.
